SCR-YS Series Split Type Current Transformer_Split current transformer_Current Transformer_Products_SENCORUI (Shenzhen) Intelligent Electrical Co., Ltd.

Input current: 0~1000A; Output current: 0~100mA; Output voltage: 0~1V

General measurement and protection in power systems with high mobility, cramped space or uninterruptible power systems.

Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements

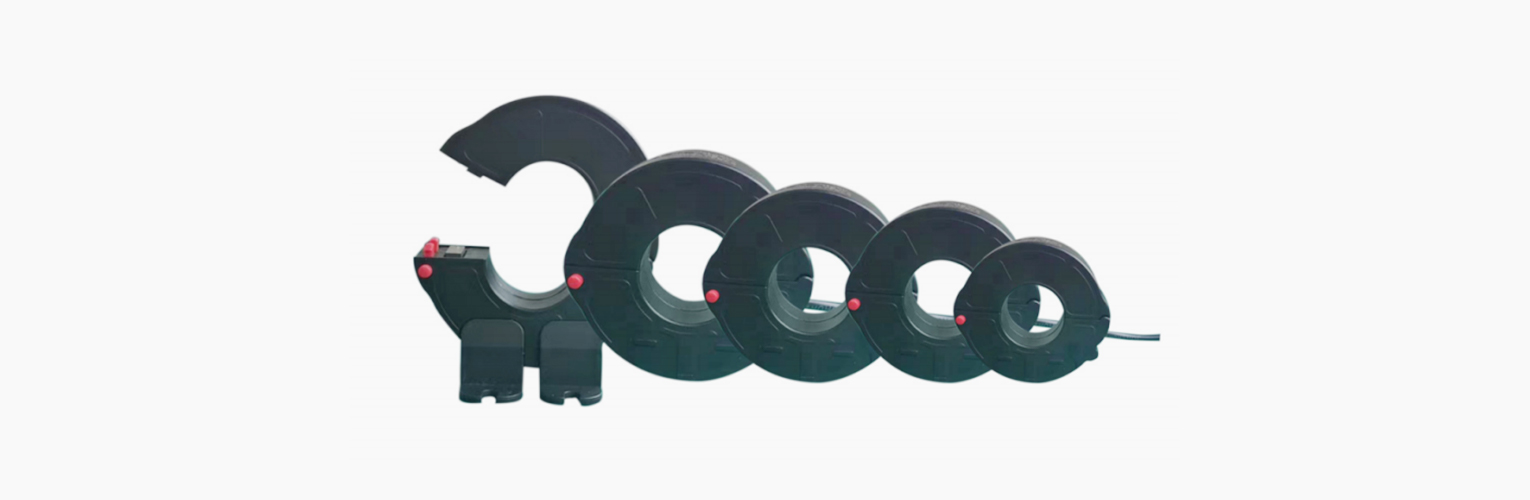

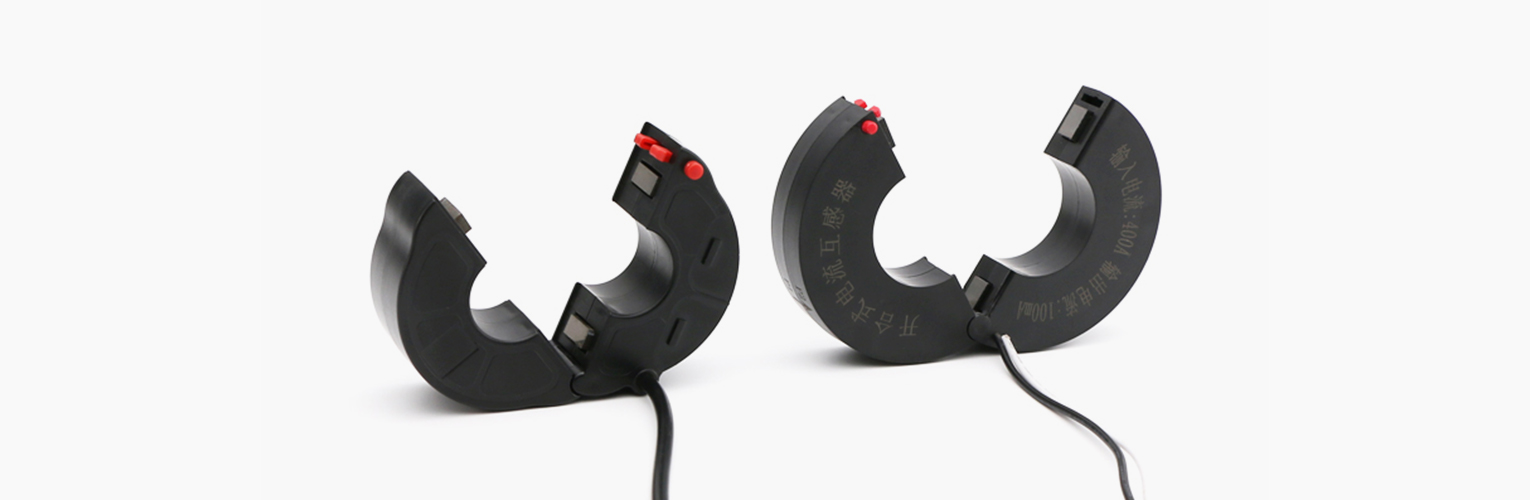

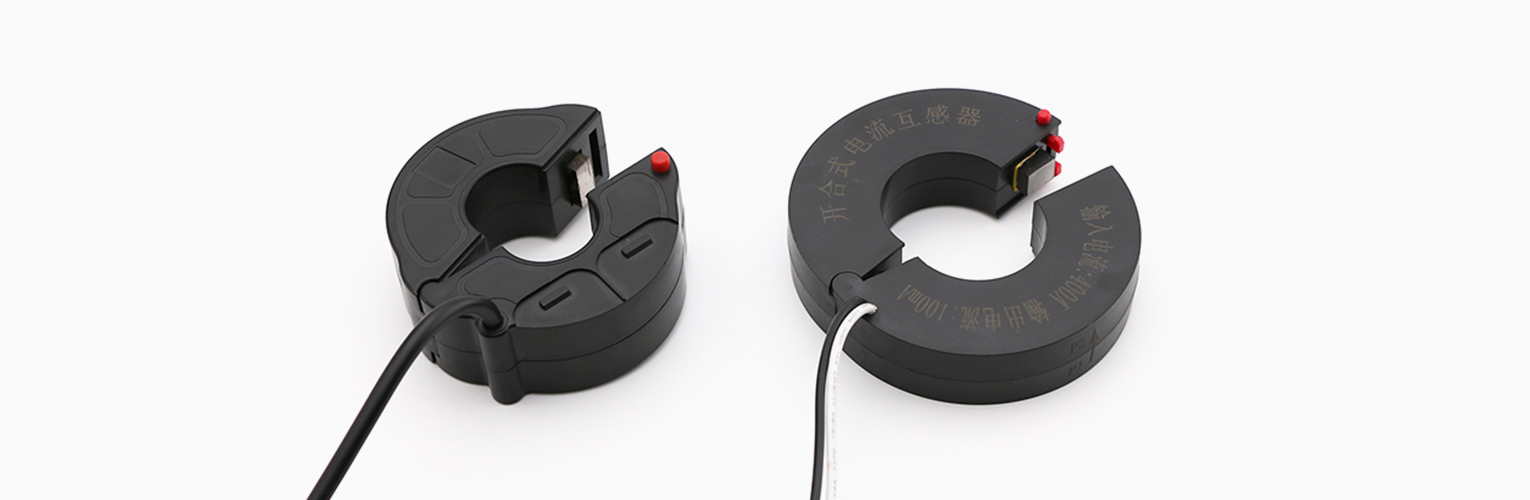

Split core design, low core loss, high precision No need to disconnect the busbar, easy installation, no impact on customers' normal electricity use Beautiful appearance, small size, light weight Snap-on opening and closing structure, easy opening and closing

Equipment maximum voltage 0.66kV Rated input 0~1000A Rated output 5A/1A/mA/mV Operating frequency 50Hz~60HZ Power frequency withstand voltage 4000V/1mA/1min (50Hz) Insulation resistance DC500V/1000M2/min

Operating environment: temperature -40℃~ +85℃ Storage environment: temperature -40℃~ +85℃ Relative humidity: no more than 95% (25℃) Reference standard: IEC 60044-1&GB&T 20840.1-2017&ANSI C57.13

ELECTRICAL PROPERTIES(at 25°C) Rated Output Current mA/Voltage mV
Model	Input Current	Maximum current	Output Current	Output voltage	Load resistance	Accuracy
KCT-YS15	0-150A	180A	0-100mA	0-1V	0-100Ω	0.5S/0.5
KCT-YS25	0-300A	360A	0-100mA	0-1V	0-100Ω	0.5S/0.5
KCT-YS35	0-630A	750A	0-100mA	0-1V	0-100Ω	0.2/0.5S
KCT-YS45	0-800A	960A	0-100mA	0-1V	0-100Ω	0.2/0.5S
KCT-YS65	0-1000A	1200A	0-100mA	0-1V	0-100Ω	0.2S/0.2

Dimensional tolerance： ±1.0mm(Unless otherwise specified) Lead Tolerance：±5mm

Vout=Is x RL RL≤100 Ohm

Note: This schematic diagram is the basic working principle of the transformer. The transformer sampling circuit can be designed for customers.
