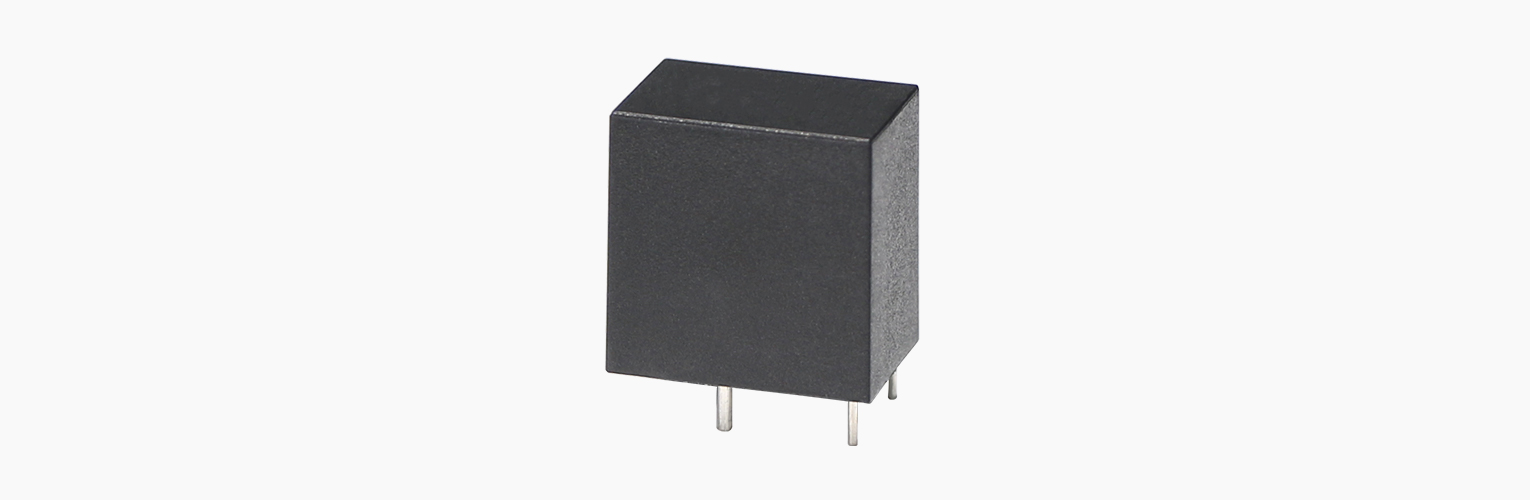

SCR105P Current transformer

Product Overview

Functional characteristics

Parameter specifications

Test circuit

Data Download

Related products

Online chassis

Buy Now

Product Overview

Rated current: 0~5A; Secondary output: 0~5mA; Current ratio: 1:1000 / 1:2000

Applicable to situations where large current needs to be converted into small current for precision measurement, or used as electrical safety protection.

Passed ISO 9001:2015; fully compliant with RoHS and REACH requirements

Functional characteristics

Features

Adopt nanocrystalline magnetic core (high precision, good linearity)

Epoxy potting, safe and reliable;

Flame retardant (compliant with UL94-V0);

Environmental protection (compliant with EU RoHS and REACH standards)

Small size, light weight, easy to assemble and weld.

Application

Detecting overload current

Ground fault detection

Metering

Analog to digital circuits

Product Features

Operating environment: temperature -40℃~ +85℃,

Storage environment: temperature -40℃~ +85℃,

Relative humidity: no more than 95% (25℃)

Reference standard: IEC 60044-1&GB&T 20840.1-2017&ANSI C57.13

Parameter specifications

ELECTRICAL PROPERTIES(at 25°C)

Model

Rated current

Secondary Current

Maximum current

Turns Ratio

Linear range

Phase Difference

Accuracy

Load resistance

Pressure resistance

Operating frequency

SCR105P-5A/5mA

5A

5mA

10A

1000:1

5~120%

30’

0.2

1

3000V

50Hz~400Hz

SCR105P-5A/2.5mA

5A

2.5mA

16A

2000:1

5~120%

20

0.2

10Ω

3000V

50Hz~400Hz

Precautions∶1、Pay attention to the load connected to the secondary of the transformer.Exceeding the rated load capacity may result in reduced accuracy or saturation.

                2. If there is no suitable product for your use in the above table, our company can tailor-make products for you according to your technical and structural requirements.




105P


Dimension units (mm)

Dimensional tolerance ±0.5mm(unless otherwise specified), pitch tolerance:±0.3mm

Note:1)Integrated transformer. Equipped with primary end, easy and quick installation

2)Unless required, terminal resistors and one turn primary are not provided

Detection circuit

Vout=Is x RL  RL≤10 Ohm

Note: This schematic diagram is the basic working principle of the transformer. The transformer sampling circuit can be designed for customers.
