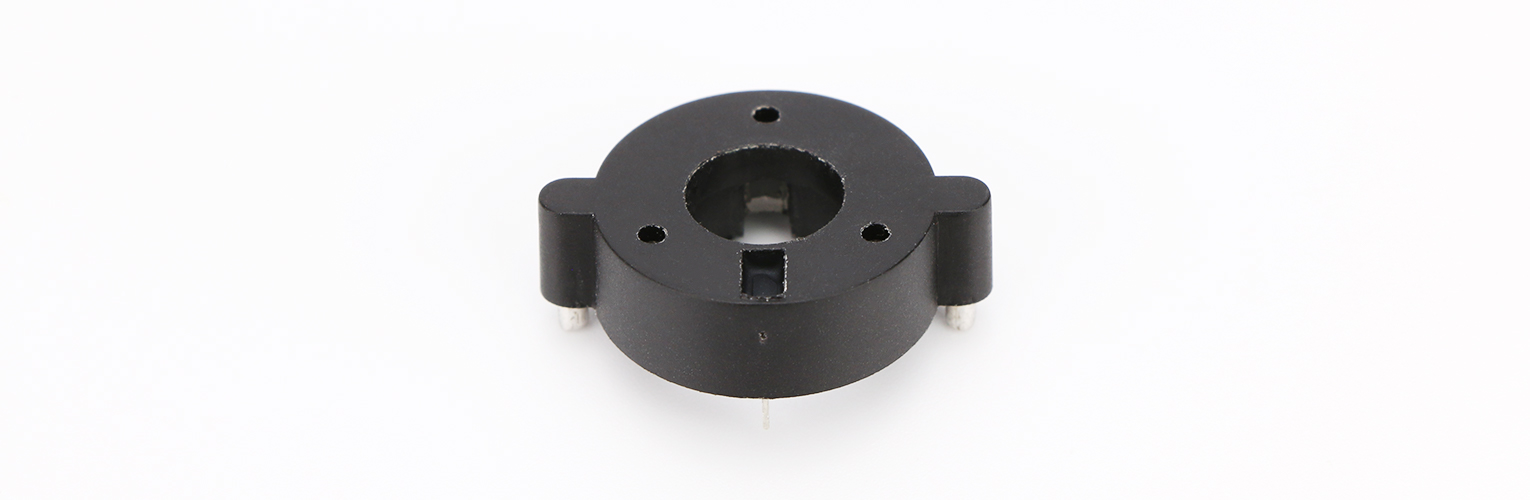

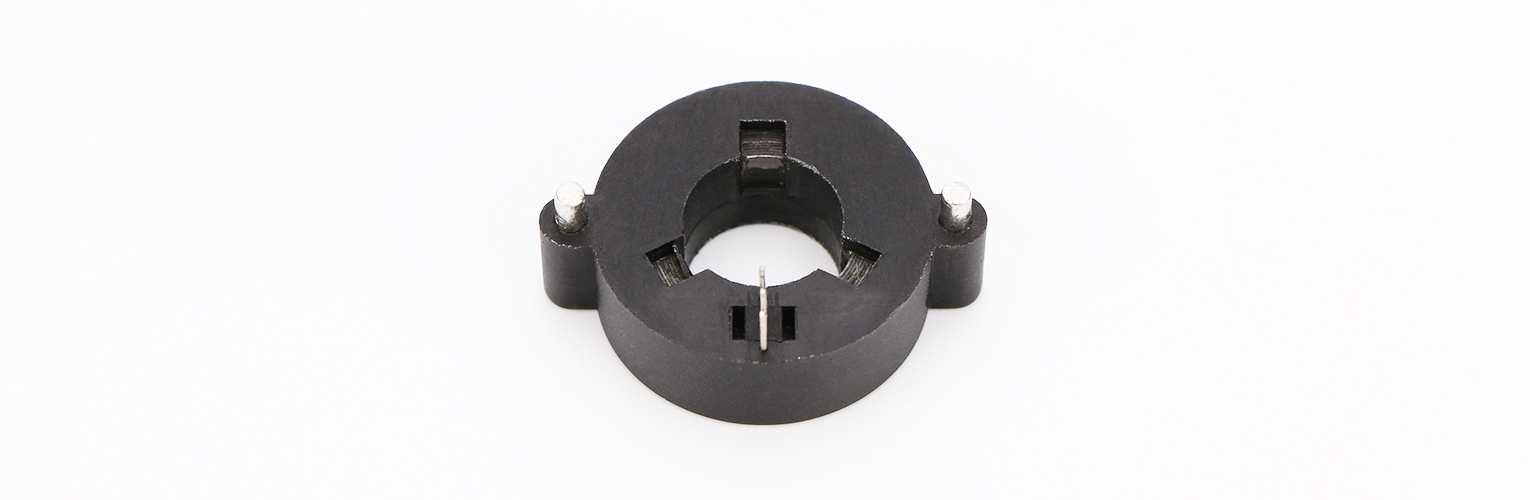

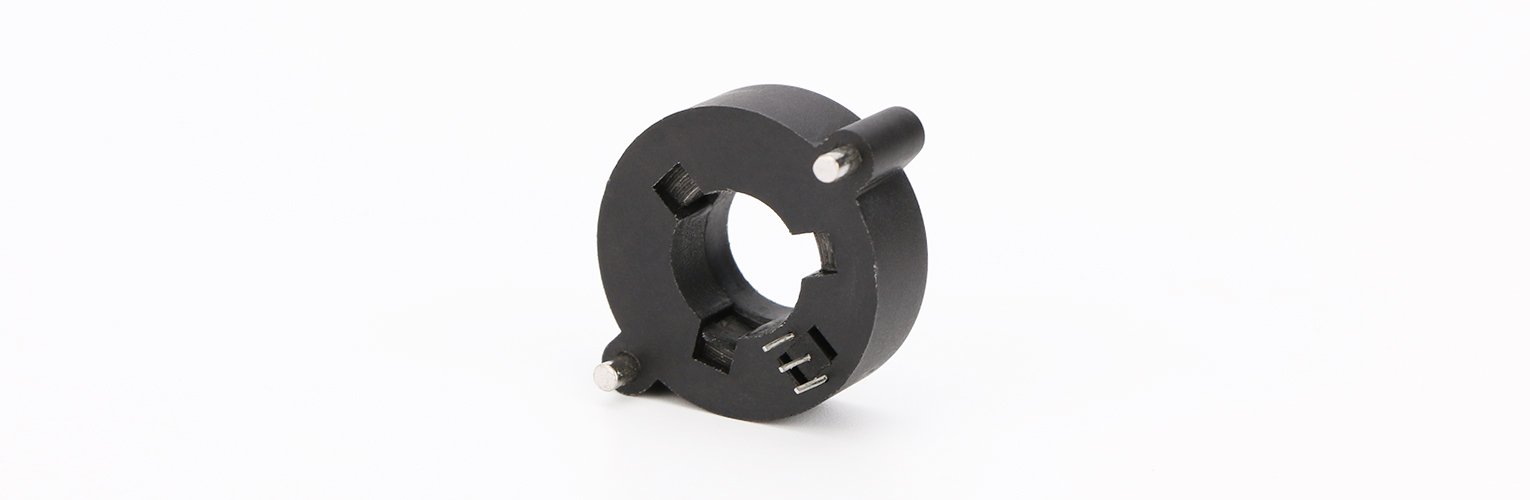

SCS10G Series Current Sensor_New Energy Current Sensor_Sensor_Products_SENCORUI (Shenzhen) Intelligent Electrical Co., Ltd.

Product Overview

Rated measuring current: 100A~800A; measuring range: ±110A~±880A; rated output voltage: 2.5V±2V

Functional characteristics

Easy to install Small size, saves space No insertion loss Strong anti-interference ability

AC variable speed drives DC motor drive static converters Communication power supplies Uninterruptible power supplies Switching power supplies Electric vehicles

Passed ISO 9001:2015 Reference standard: JB/T 7490-2007 Storage environment: temperature -40℃~ +125℃, relative humidity: no more than 95% (25℃)

Parameter specifications

ELECTRICAL PROPERTIES( Unless otherwise stated, environmental parameters are @ TA = 25℃，RL = 10 kΩ)
Model	SCS10G-XXX IP500
Rated measuring current IP	100A	200A	300A	400A	500A	600A	700A	800A
Measuring range IPM	±110A	±220A	±330A	±440A	±550A	±660A	±770A	±880A
Rated output voltage VOUT	2.5V±2V
Zero point. Offset voltage VO	2.5V±20mV 0.5 / 0 3.15
Supply voltage VC	+5VDC（± 5%）
Load resistance RM	≥10KΩ
Linearity εL	≤0.5%FS
Overall accuracy X	±1%FS(@ TA = 25℃)
Zero offset voltage temperature drift VOUT	±0.2mV/℃
Amplitude Voltage Temperature Drift VOUT	≤0.05%/℃
Quiescent current consumption IC	≤20mA
Response time TR @90%	＜7us
Bandwidth BW	DC～100kHz
di/dt following accuracy	>50A/us
Insulation withstand voltage VD	50Hz，1min，2KV
Working environment temperatureTA	-40～+125℃
Mass m	≈11g

Customized: If there is no product suitable for your use in the above table, our company can customize the product for you according to your technical and structural requirements. Please contact us.

Mechanical characteristics
General tolerance	± 0.5 mm
Other tolerance execution	GB/T 1804-2000-M
Fixing hole size	Φ2.0mm
Connection of secondary	0.5*0.5mm
Recommended wave soldering temperature	265℃±5℃

Remarks:

The false wiring may result in the damage of the sensor.

VOUT is positive when IP flows in the direction of the arrow.

Dynamic performances (di/dt and response time) are best with a single bar completely filling the primary hole.

Temperature of the primary conductor should not exceed 100°C.
